It is almost time for Chillventa 2024. We are there presenting our latest developments with our experts and we welcome you to discuss your insights about transitioning to natural refrigerants with us. Looking forward to meeting you at our stand!

Best regards,
Heikki Oksanen
Refrigeration Business Director

Vahterus is delighted to once again be exhibiting at Chillventa this fall. This biennial main event of the refrigeration industry brings together refrigeration, AC, ventilation and heat pump experts from around the world. Meet our team in hall 5, booth number 5-328.

In the meantime, please explore our safe refrigeration solutions for the next generation through the content below.

Vahterus Plate & Shell Heat Exchangers have many benefits for advanced refrigeration applications such as evaporators, condensers, cascades, desuperheaters and oil coolers. Plate & Shell Heat Exchangers are effective, durable & versatile due to their unique shell construction together with fully welded plates. This also makes them ideal for contractors who need compact size and low refrigerant charge. Vahterus Heat Exchangers are suitable for all refrigerants, especially for natural media such as ammonia and carbon dioxide.

Please download the one-pager of the Vahterus Plate & Shell Heat Exchangers in Refrigeration - including technical specifications - via the button below.

Vahterus has over 30 years' experience with heat-transfer solutions.

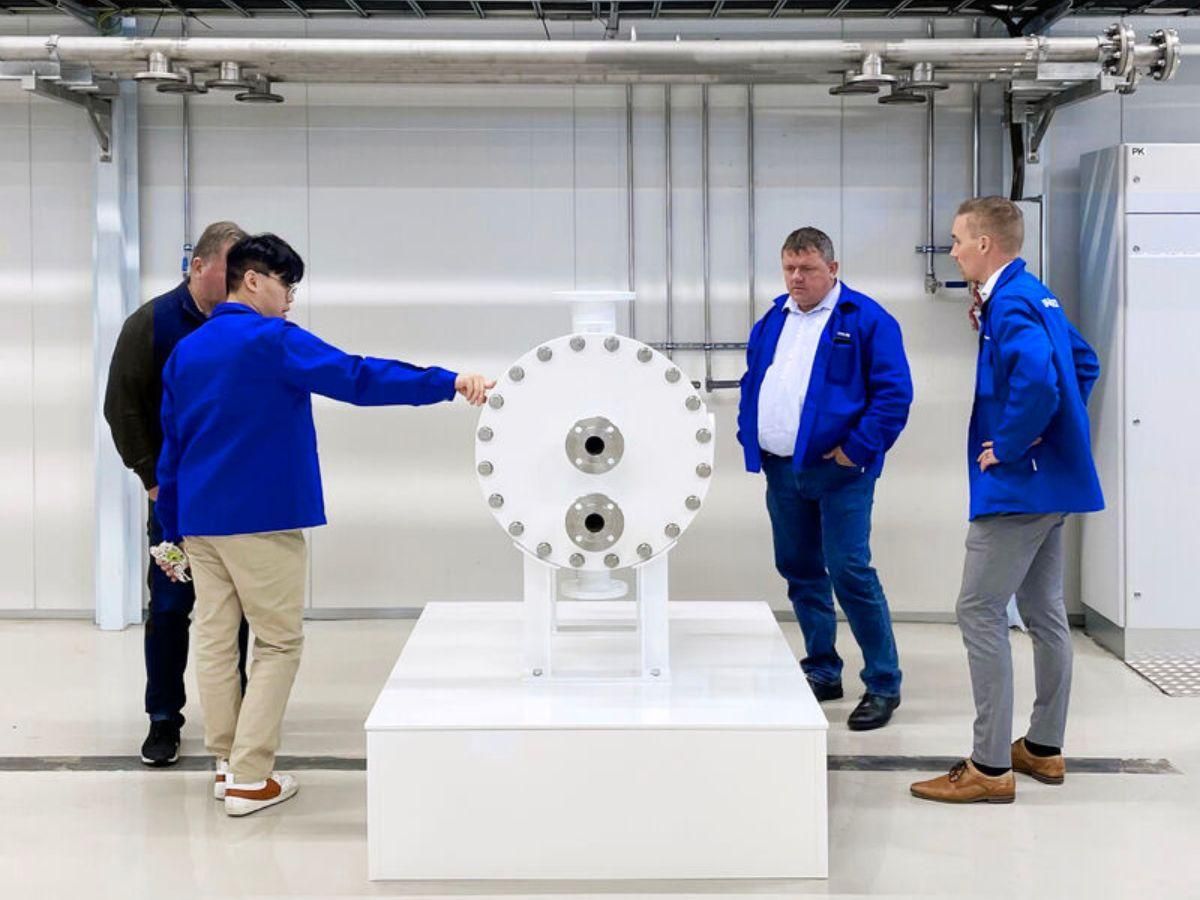

In October 2023, we introduced a new Steam Generator product line. It is designed especially for industrial heat pumps users, but any liquid, gaseous or condensing heat source can be used when producing steam with the Vahterus Steam Generator.

We are entering an era when fired boilers for heating and steam generation purposes are being replaced, in many cases by heat pumps, both in households and for industrial use.

Vahterus has delivered steam generators for various applications for years. Heat sources range from process waste heat to power-plant steam. Our long experience of industrial refrigeration and wide knowledge of steam systems allows us to design well-fitting steam-generator solutions that can be used with many types of heat pumps utilising high-temperature and a large pressure range. Download the Steam Generator product sheet as a PDF below.

Vahterus has also developed a type of heat exchanger that combines desuperheating, condensating and subcooling in one single unit.

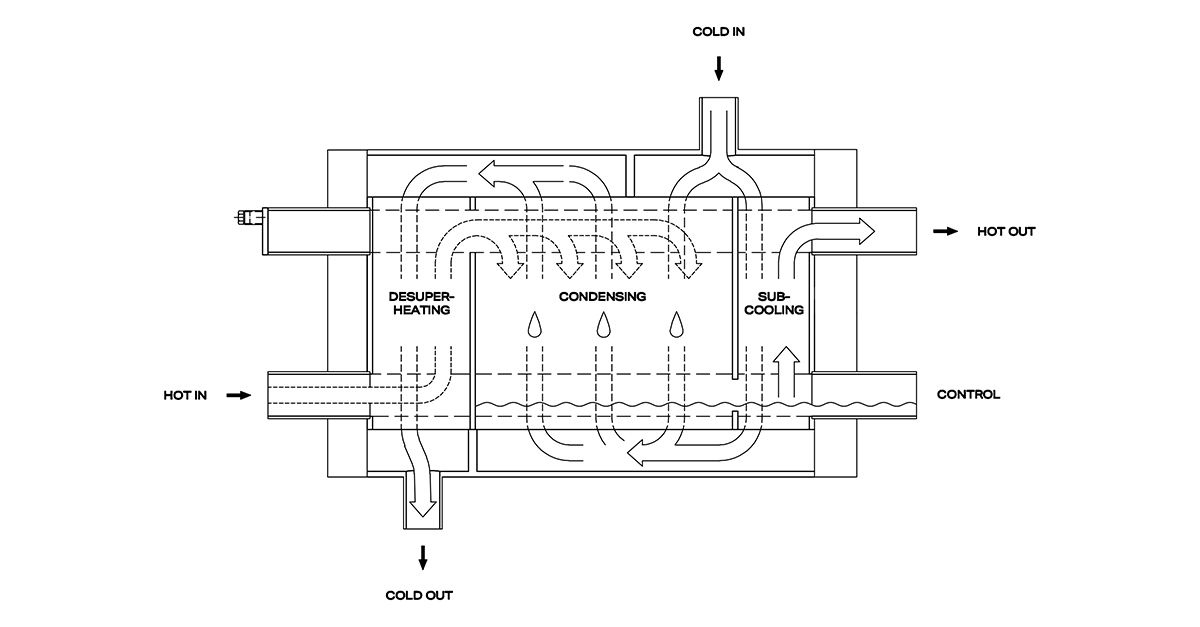

The Vahterus PSHE Multi-Condenser is a new model of ammonia condenser developed primarily for the growing heat-pump market, but suitable for other condensing applications such as steam condensers.

Vahterus PSHE Multi-Condenser improves the heat pump system COP (Coefficient of performance), desuperheating, condensating and subcooling the ammonia in a single unit, allowing for multiple variations.

The product offers increased safety and a service-free future for the customer. The fully welded plate construction has no gaskets that require service or create possible leakage risk for the surrounding environment.

The installed heat-pump capacity of Vahterus condensers is over 1000MW. Vahterus PSHE Multi-Condenser will make it possible to get even more capacity and higher system COP in the coming years. Please find the product sheet as a PDF below.

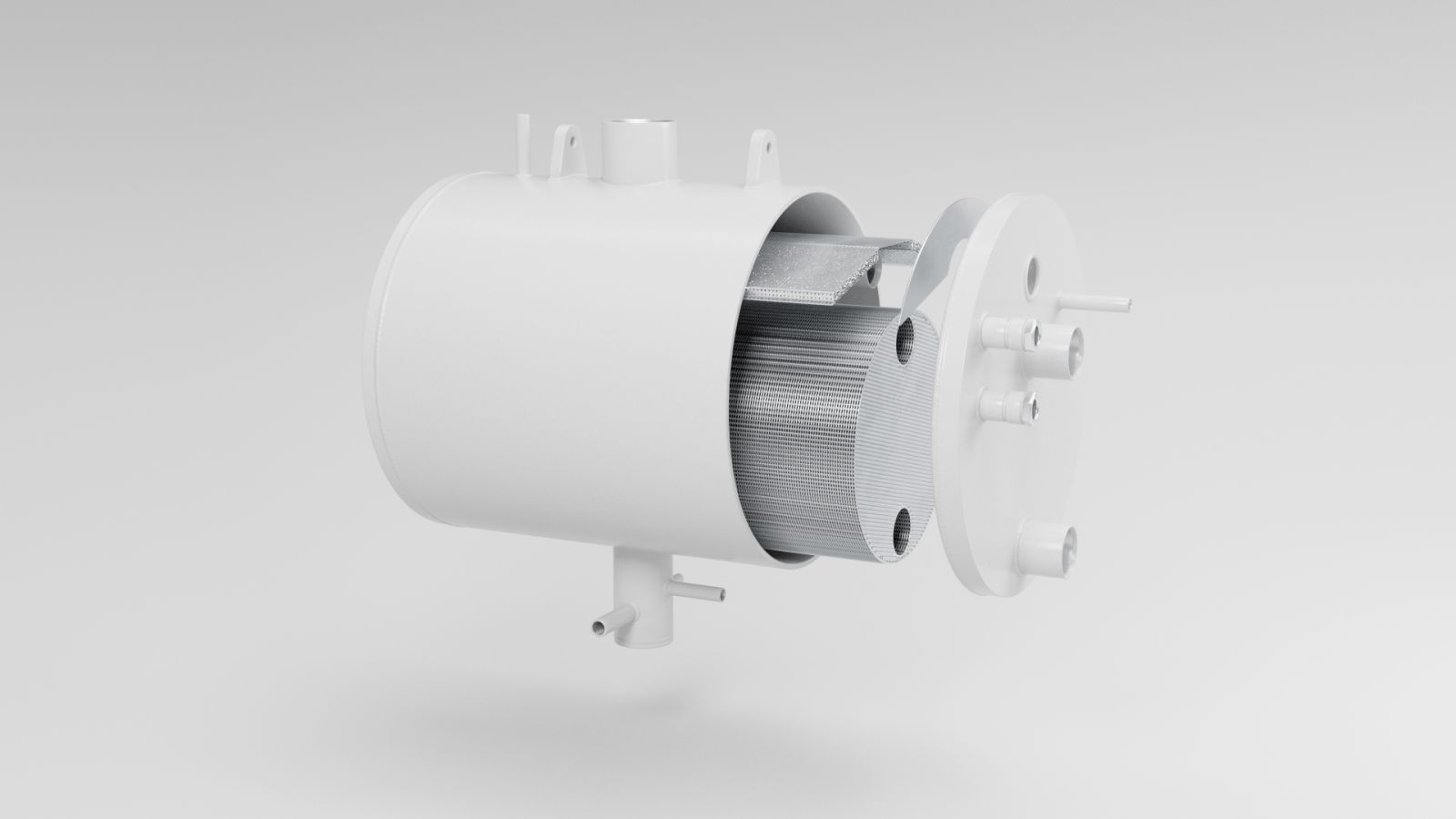

Vahterus Combined is a compact solution available for use with both flooded evaporators and flooded cascades. These Combined solutions integrate the evaporator and separation system within a single vessel, creating a compact solution with low refrigerant charge.

The compact size of Combined creates cost savings both in terms of insulation and piping. Cleaning can be easily and efficiently performed via back flushing and/or chemical cleaning. Constructed from fully welded circular plates housed within a protective shell, Combined ensures safe and durable operation, which is suitable for use with all refrigerants. The Vahterus fully welded construction eliminates the use of gaskets, providing operational benefits, both in terms of cost and safety. Combined can be designed with oversized shell to achieve higher fluctuation volumes.

Download the product sheet of the Vahterus PSHE Combined via the button under.

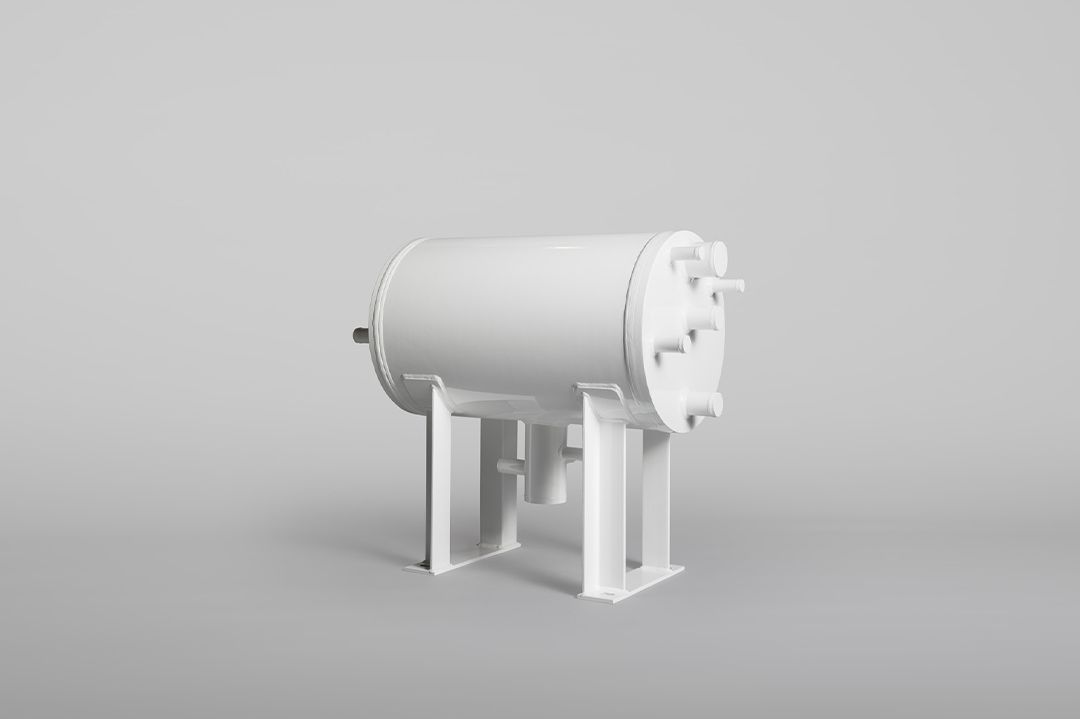

In addition, Vahterus has also developed a second-generation combined evaporator, Combined C, for even more compact refrigeration packages. The model has an ammonia suction connection on the end plate of the shell. The connection size will be matched to the shell size of the unit. Another innovation is the location of the ammonia injection close to the outer shell. The top of the shell is designed so that it will remain free from any connections. This will enable the positioning of other components such as a condenser on top of the evaporator, with only a small space for insulation required between the units.

The Combined C is a very safe solution for ammonia with low charge. Download the Combined C product sheet via the button.

Interact with our 3D model to explore the Vahterus Plate & Shell Combined Evaporator further.

How to use the 3D Model

See the Heat Exchanger in 3D
Click and drag with your mouse, or move with your finger on mobile.

Open the Heat Exchanger for more details
Click or tap on the end plate to open and close the Heat Exchanger.

Learn more about the Heat Exchanger key features
Click the dots (numbers) on the Heat Exchanger to learn more about the key features.

Already have a project in mind where Vahterus solutions could be the right fit? Interested to find out if we could collaborate together? We have a history of long-lasting partnerships with industry leaders who trust both our products' and peoples' excellence and innovation. If there is anything you would like to discuss with us please get in touch and we will be happy to assist. Together we succeed!
